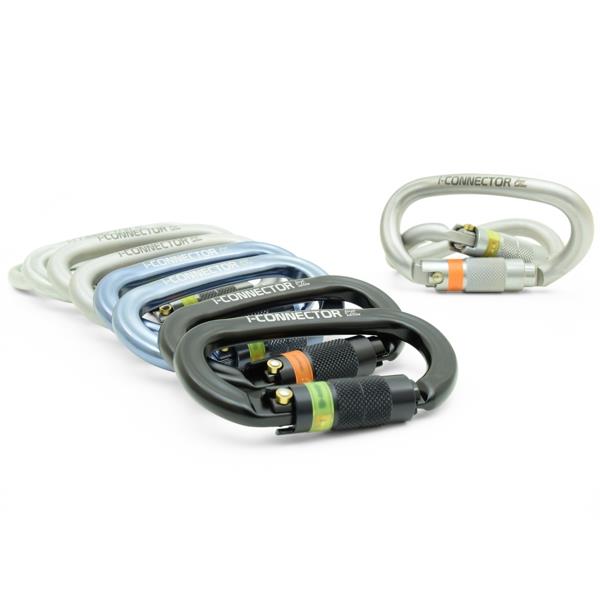

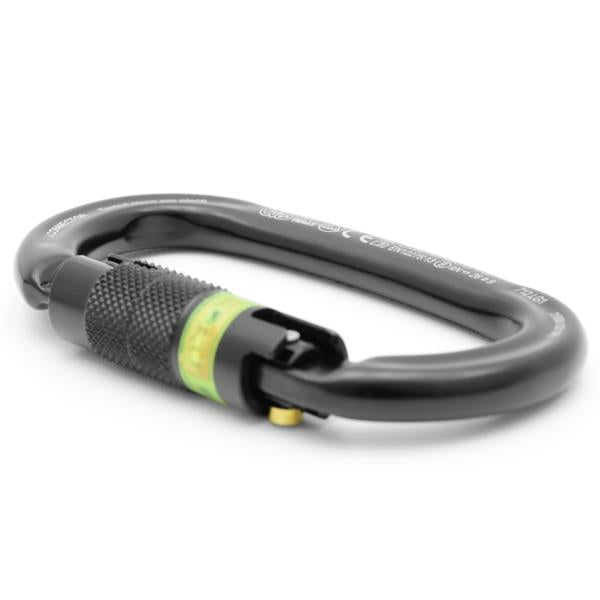

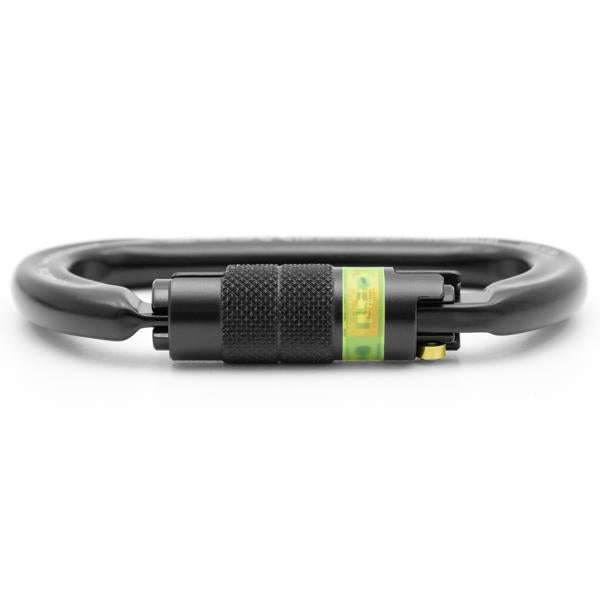

I-OVALONE DNA TWISTLOCK Connector

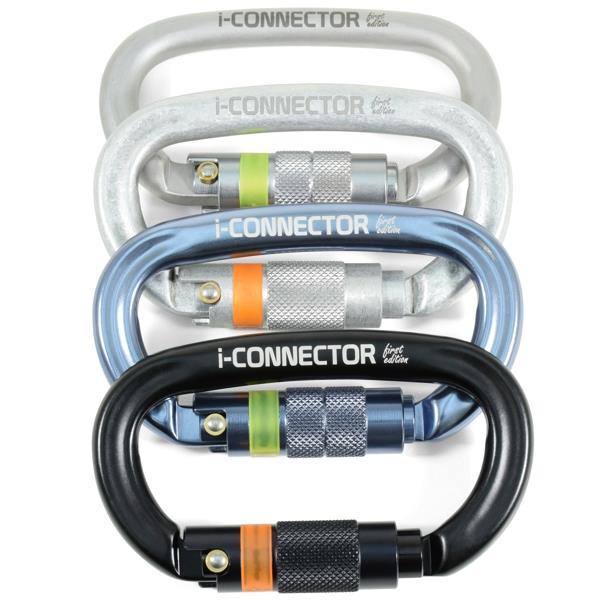

I-CONNECTOR | CONNECTOR WITH INTEGRATED NFC CHIP

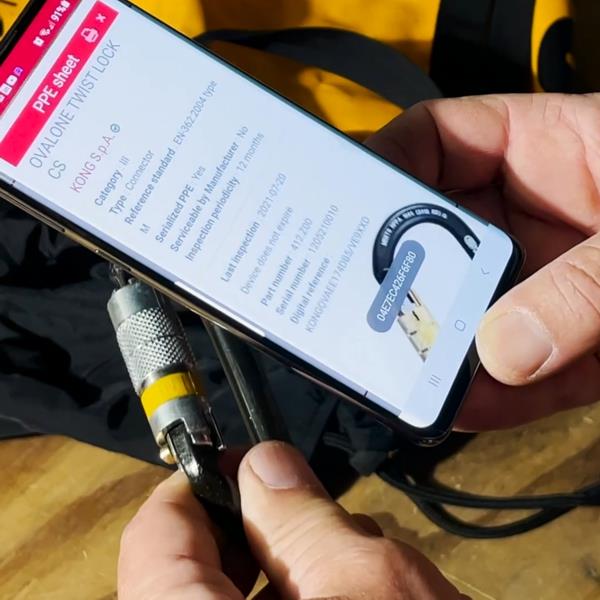

New connector equipped with NFC chip that brings the history of your device always at your fingertips. No expensive readers required. Readable with a common smartphone or PC. This solution provides an easier and faster periodic inspection process, avoiding dangerous mistakes made during the serial number transcription. Compatible with any inspection software. Patented system. Standard version, without chip, also available.

Special “helical-shaped” connector with a twisted carbon steel body and circular bar, a must-have when an “offset” load is required. It permits 90° rotation of any connected device (descenders, rope clamps, fall arresters, etc.), optimizing the operating alignment. Available with Auto Block (3 movements) and Twist Lock (2 movements) sleeve, conform to CE or ANSI standards. High quality product, made in Italy!

New LUNAR WHITE finish. Zinc-Nickel treatment that, compared to normal black galvanizing, offers double resistance to corrosion, longer life and less friction on cords and textile devices.

Standards - EN 362/M
Material - Carbon Steel
Main Axis Load - 40 kN
Minor Axis Load - 15 kN
Weight - 219g

A. Length - 108mm
B. Width - 63mm
C. Body Diameter - /
D. Eyelet Diameter - /
E. Gate Opening Diameter - 19mm

User Manual
