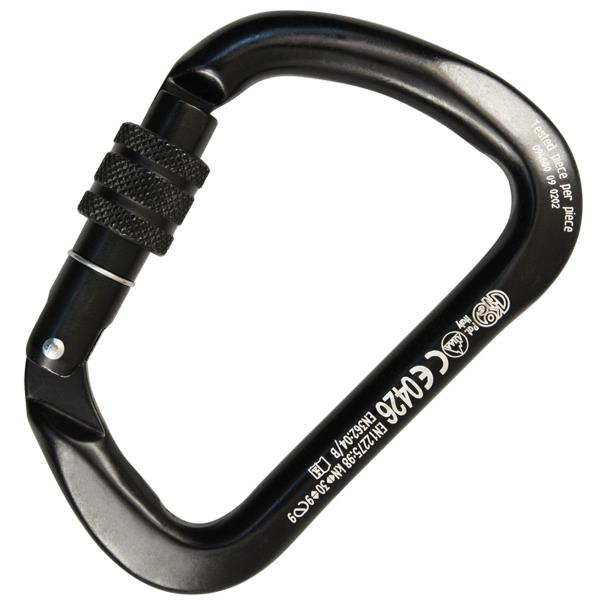

X-LARGE ALU SCREW SLEEVE Carabiner

Light alloy carabiner with screw sleeve. The X-Large is designed to offer a wide gate opening and a high tensile strength. The particular D shape prevents the rotation of the carabiner and allows to distribute the load along the major axis.
Equipped with Keylock system that prevents any snagging on the rope and in the bolts.
Fitted with screw sleeve, easy to open even wearing gloves.
High quality product completely developed and produced in Italy.
Tested piece by piece.

Standards - EN 12275, EN 362/B, UIAA
Material - Alu Alloy
Main Axis Load - 30 kN
Minor Axis Load - 8 kN
Open Gate Load - 10 kN
Weight - 90g

A. Length - 114mm
B. Width - 76.5mm
C. Body Diameter - 12mm
D. Eyelet Diameter - /
E. Gate Opening Diameter - 27mm

User Manual
