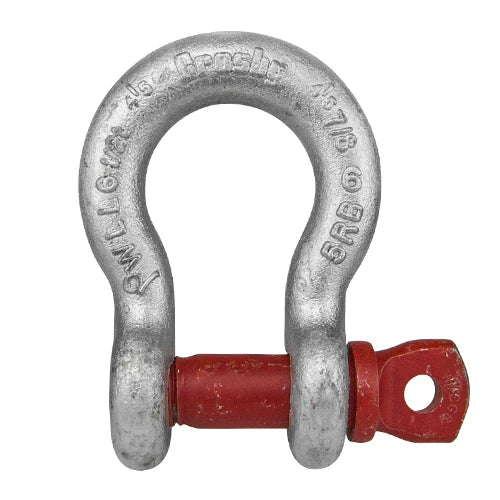

Crosby Screw Pin Anchor Shackle

Trusted Screw Pin Shackles for Everyday Rigging and Lifting:

The Crosby G-209 Screw Pin Anchor Shackle is a versatile Grade 6 shackle designed for lifting, rigging, towing and load securement applications. Its rounded anchor-style bow provides additional room for multi-leg slings and helps accommodate loads that may shift during handling, while the removable screw pin allows fast attachment and removal in applications where connections are changed frequently.

Each G-209 shackle is forged, quenched and tempered with an alloy pin, and permanently marked with its Working Load Limit and Grade 6 designation. The hot-dip galvanized finish provides added corrosion resistance, while smaller sizes through 3/8 inch are mechanically galvanized. Crosby’s distinctive Red Pin® provides an easily recognized mark of genuine Crosby quality.

Key Highlights:

✓

Forged Grade 6 Construction

Forged, quenched and tempered with a high-strength alloy screw pin.

✓

Fast Screw Pin Connection

Installs and removes easily for applications with frequently changed connections.

✓

Load Rated

Working Load Limit and Grade 6 designation are permanently marked on every shackle.

✓

Fatigue Rated

Rated for 20,000 cycles at 1.5 times the Working Load Limit.

✓

Recognized Industry Standards

Meets or exceeds ASME B30.26 requirements and the design requirements of ISO 2415.

Applications:

Crosby G-209 screw pin anchor shackles are commonly used to connect wire rope, chain, synthetic slings and other rigging components in construction, manufacturing, marine, transportation and general material handling applications. The wide anchor-style bow makes the G-209 particularly useful for multi-leg sling connections, while the screw pin design is best suited for temporary or frequently inspected connections where the pin can be checked before each lift.

Specifications:

Stock No. Nominal Size (in) Working Load Limit (ton) Pin Diameter (in) Throat Opening (in) Weight (lb) Replacement Pin

1018357 3/16 1/3 0.25 0.38 0.06 —

1018375 1/4 1/2 0.32 0.47 0.10 —

1018393 5/16 3/4 0.38 0.53 0.18 —

1018419 3/8 1 0.44 0.66 0.31 —

1018437 7/16 1-1/2 0.50 0.75 0.38 —

1018455 1/2 2 0.63 0.81 0.72 —

1018473 5/8 3-1/4 0.75 1.06 1.37 —

1018491 3/4 4-3/4 0.88 1.25 2.35 —

1018516 7/8 6-1/2 1.00 1.44 3.62 —

1018534 1 8-1/2 1.16 1.69 5.03 —

1018552 1-1/8 9-1/2 1.25 1.81 7.41 1082599

1018570 1-1/4 12 1.41 2.03 9.50 1082615

1018598 1-3/8 13-1/2 1.56 2.25 13.53 1082633

1018614 1-1/2 17 1.66 2.38 17.20 1082651

1018632 1-3/4 25 2.03 2.88 30.90 1082679

1018650 2 35 2.28 3.25 45.00 1082697

1018678 2-1/2 55 2.78 4.12 85.75 1082713

6:1 design factor. Maximum proof load is two times the Working Load Limit. Working Load Limits may be reduced when shackles are subjected to side loading. Always follow the applicable manufacturer warnings and application instructions.

Questions?

Contact the Bishop Lifting team for help selecting the correct Crosby G-209 screw pin anchor shackle, size or replacement pin for your lifting and rigging application.

Close

Specifications

MPN 1018455

Model G-209

Size 1/2"

Type Screw Pin Anchor

Material Carbon Steel

WLL (tons) 2

WLL (lbs) 4400

Safety Factor 6:1

Overhead Lifting Rated Yes

Inside Length 1.88"

Inside Width 1.31"

Throat Opening 0.81"

Pin Diameter 0.63"

Approx. Weight (lbs) 0.72

Country of Origin USA
